When Your Viking Range Grate Starts Letting You Down
There's a particular frustration that comes with a high-end range that suddenly feels unreliable. You spent real money on a Viking — because you cook seriously, or because you wanted a kitchen that performs at that level. And then one morning you notice a grate wobbling under your Dutch oven, or you see a crack spreading across the cast iron, or the porcelain coating has worn through in patches and rust is starting to creep in. The stove still works, but it doesn't feel right anymore.
Cast iron burner grate replacement on a Viking range is one of those maintenance tasks that sounds simple until you're standing in front of a parts listing trying to figure out whether part number PA060037 is the same as PA060024, why some grates are listed as 10" x 10" and others as 10" x 10.9", and whether OEM is actually worth the price difference. This guide walks through the entire decision process — how to assess your current grates, how to identify the correct replacement, and what criteria actually matter when you're choosing between options.
Why Viking Grates Wear Out Faster Than You'd Expect
Cast iron is one of the most durable materials used in cookware and appliance manufacturing. But durability isn't the same as invincibility, and Viking grates live a genuinely hard life. They sit directly over open flames. They support heavy pots and pans — sometimes very heavy ones. They absorb boilovers, grease splatters, acidic tomato sauces, and the caustic cleaners people use trying to get all of that off again.
The Main Failure Modes
- Surface rust: Cast iron is essentially iron with a small amount of carbon. Without a protective coating or a seasoned layer, it oxidizes readily. Viking grates typically ship with an enamel or porcelain coating, but that coating chips and wears, especially around the contact points where cookware sits.
- Cracking: Thermal shock — pouring cold water onto a very hot grate, for example — can crack cast iron. So can impact. A heavy pan dropped from even a short height can fracture a grate that's already been weakened by heat cycling over years of use.
- Warping: Less common with cast iron than with steel grates, but sustained uneven heating (running one burner constantly under a slightly misfit grate) can cause subtle warping that makes pots rock and creates uneven heat distribution.
- Porcelain spalling: The coating doesn't just chip — it can flake in ways that contaminate food. Once you see porcelain spalling actively, the grate needs to come out of rotation.
Most Viking owners find that their grates last anywhere from three to eight years under regular home cooking conditions. In households where the range runs daily for serious cooking, that window shortens. Restaurant-adjacent use — multiple hours of cooking every day — can degrade grates in under two years.

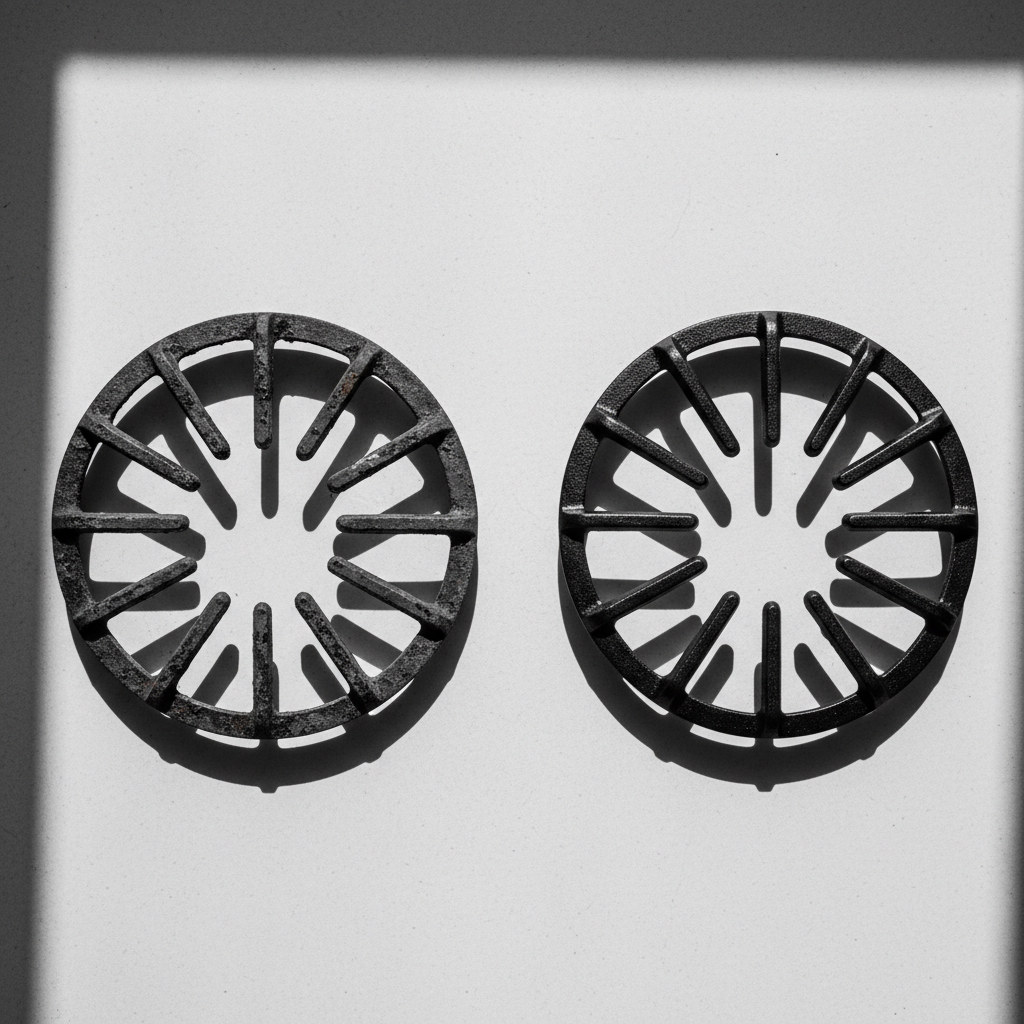

OEM vs. Aftermarket: What the Difference Actually Means
This is the question most people get stuck on, and it's worth being direct about it. OEM stands for Original Equipment Manufacturer — meaning the part was made by Viking or an authorized supplier to Viking's exact specifications. Aftermarket means the part was made by a third-party manufacturer to match (or approximate) those specifications.
The Case for OEM
OEM parts come with a few genuine advantages. First, dimensional accuracy: the fit on a Viking range is precise, and OEM grates are machined to match the burner cap and base plate geometry exactly. Second, material consistency: Viking specifies a particular grade of cast iron and a particular coating process, and OEM parts follow those specs. Third, warranty: in the rare cases where Viking's appliance warranty is still active, using OEM parts keeps that warranty intact.
The main downside is price. Viking OEM grates are expensive — often $80 to $150 per grate, depending on the model. For a six-burner range that needs full replacement, that's a substantial cost.
The Case for Aftermarket
High-quality aftermarket grates have improved significantly over the past decade. The best aftermarket options are manufactured to tight dimensional tolerances and use comparable grades of cast iron. For discontinued Viking models where OEM parts are no longer available, aftermarket is often the only practical path.
The risk with aftermarket is inconsistency. The category ranges from precisely engineered replacements to poorly cast parts with loose fits and inferior coatings. The difference between a good aftermarket grate and a bad one isn't always visible in a product photo — it shows up when the grate wobbles slightly on the burner base, or when the coating starts to flake within a few months of use.
The practical answer for most Viking owners: if your model is still in production and your range is less than five years old, OEM is worth the premium. If your range is older, if you're replacing multiple grates at once, or if your model has been discontinued, a well-specified aftermarket grate from a reputable parts supplier is a sound choice — provided you verify the dimensions carefully.
How to Identify the Right Replacement Grate for Your Viking Model
This is where the cast iron burner grate replacement guide gets granular, because Viking has produced a wide range of range and cooktop models over the years, and the grates are not universal. Getting the wrong size creates more problems than it solves.
Step 1: Locate Your Model Number
The model number is your starting point. On most Viking ranges, it's printed on a label inside the oven door frame (visible when you open the door) or on the back panel of the appliance. Common model series that use the 10" x 10.9" spider-style grate configuration include the DSC305, VGIC305, and VGIC365 — these are among the most widely produced Viking professional ranges and have robust parts availability.
Step 2: Identify Your Burner Configuration
Viking uses different grate configurations depending on the burner type. The spider grate (also called a star grate or cross grate) is the most common — it's the cast iron frame with radiating arms that cradles round-bottomed cookware. Some Viking models also use a continuous grate system, where two or more adjacent burners share a single large grate surface. These are not interchangeable.
Measure your existing grate before ordering. The critical dimensions are:
- Outer footprint: The overall width and depth of the grate as it sits on the range top.
- Leg spacing: The distance between the bottom contact points (legs) of the grate — this determines whether the grate seats properly on your burner base.
- Center opening diameter: The hole in the center of the grate that sits over the burner cap. Too tight and it won't seat; too loose and heat distribution is compromised.
Step 3: Cross-Reference Part Numbers
Viking part numbers can be confusing because some parts were reissued under updated numbers. PA060037 and PA060024 are related part numbers that appear across several Viking professional range grate applications — they refer to the same physical grate geometry but may have been issued at different production periods. When you see both listed for a replacement product, it generally means the replacement is compatible with ranges that used either original part number.
For owners of the DSC305, VGIC305, or VGIC365, the PA060037/PA060024 spider grate replacement at 10" x 10.9" is the standard fit — and it's worth verifying against your own measurements before ordering.
Assessing Grate Condition: Replace All at Once or One at a Time?
A question I hear often: do you need to replace all your grates at the same time, or can you replace just the damaged one?
The honest answer depends on the condition of your remaining grates. If the rest are in solid shape — no cracks, no significant rust, coating still largely intact — replacing just the damaged unit is fine. Cast iron grates don't need to be matched sets the way burner caps do.
However, if your other grates are showing early signs of wear (surface rust, minor coating chips, slight unevenness when you run your hand across them), replacing them all together makes more sense. You'll save on shipping costs, you'll avoid another repair cycle in six months, and your range will have a consistent cooking surface across all burners.
One practical note: if you've been cleaning your grates with harsh abrasive cleaners or putting them through the dishwasher regularly, the coating wear will be accelerated across all of them, and you're likely looking at full replacement sooner than you'd expect.
Proper Installation: Getting the Fit Right
Cast iron grate installation on a Viking range is not technically complex, but a few details matter.
Clean the Burner Base Before Installing
Remove the old grate and clean the burner base plate thoroughly. Boilover residue and carbon buildup on the base plate can prevent a new grate from seating level. A damp cloth and a plastic scraper (not metal — you don't want to scratch the porcelain cooktop surface) work well here.
Inspect the Burner Cap
While the grate is off, look at the burner cap. If it's caked with residue or if any of the small flame ports are clogged, clean them with a soft brush. A grate in perfect condition won't perform well sitting over a fouled burner.
Seat the Grate Slowly
Lower the new grate into position carefully and press gently on each corner to confirm it's sitting flat. A properly fitted grate shouldn't rock at all. If there's any movement, the grate legs aren't seated correctly — lift it, reposition, and try again. Don't force it; cast iron grates that are forced into position can crack at the legs.
Test Before Cooking
Turn the burner on low and observe the flame pattern for a minute or two before placing any cookware. Confirm the flame is distributed evenly around the burner cap and that the grate isn't conducting heat unevenly (you'll feel this if one area of the grate gets hot significantly faster than another). If everything looks even, you're good to go.
Ongoing Maintenance to Extend Grate Life
Replacement grates aren't cheap, and a few simple habits can meaningfully extend their service life.
- Never put cast iron grates in the dishwasher. The prolonged exposure to water and harsh detergent strips the coating and promotes rust formation. Hand wash with mild soap and dry immediately.
- Address rust spots early. Light surface rust on cast iron can be treated with a paste of baking soda and water, or fine steel wool followed by a light application of cooking oil. Don't let rust spread — once it gets into a crack or a deep pit, the grate's structural integrity is compromised.
- Avoid thermal shock. Let grates cool before cleaning. Running cold water over a grate that's been over high heat for an hour is a reliable way to crack cast iron.
- Lift, don't drag. Dragging pots across the grate surface chips the coating and scratches the cast iron. The consistent rubbing also gradually deforms the contact points where the grate legs sit on the base plate.
- Season occasionally if uncoated. If you have uncoated cast iron grates (less common on Viking ranges, but present on some models), a light wipe with vegetable oil after cleaning and a brief burn-off on low heat will help maintain the protective layer.
When a Grate Replacement Isn't Enough
Sometimes what looks like a grate problem is actually a burner problem. If you've installed a new, correctly fitting grate and you're still getting uneven cooking, a wobbling surface, or inconsistent flame patterns, the issue may be:
- A worn or warped burner base plate that's no longer providing a level mounting surface
- A clogged or damaged burner cap that's disrupting flame distribution
- An igniter issue that's causing one burner to run at reduced output
In these cases, the grate is fine — the burner assembly itself needs attention. If you're not comfortable diagnosing appliance issues, a certified Viking service technician is the right call. Viking ranges are repairable appliances, not disposable ones, and most burner issues short of a complete manifold failure are fixable without replacing the whole unit.
Quick Reference: Viking Cast Iron Burner Grate Replacement Checklist
- Locate your range model number (inside oven door frame or back panel).
- Measure your existing grate: outer footprint, leg spacing, center opening diameter.
- Confirm your burner configuration: spider grate, continuous grate, or other.
- Cross-reference your model number with the appropriate part numbers (PA060037 / PA060024 for DSC305, VGIC305, VGIC365 series).
- Decide OEM or aftermarket based on your range's age, warranty status, and parts availability.
- Assess whether to replace one grate or all — consider the condition of adjacent grates.
- Clean the burner base and inspect the burner cap before installing the new grate.
- Seat the grate carefully, confirm it's level, and test the burner before cooking.
- Adopt hand-washing, no thermal shock, and occasional seasoning (if applicable) as ongoing habits.
A well-chosen replacement grate restores your Viking range to the level of performance it was built for. The key is taking the time to identify the right fit — because a grate that's slightly off in dimension or significantly inferior in casting quality will create new frustrations rather than solving the original one. For most Viking professional range owners dealing with the DSC305, VGIC305, or VGIC365 models, a correctly spec'd cast iron burner grate replacement gets the range back to feeling solid, stable, and ready for serious cooking.
